EBA-75 CCER

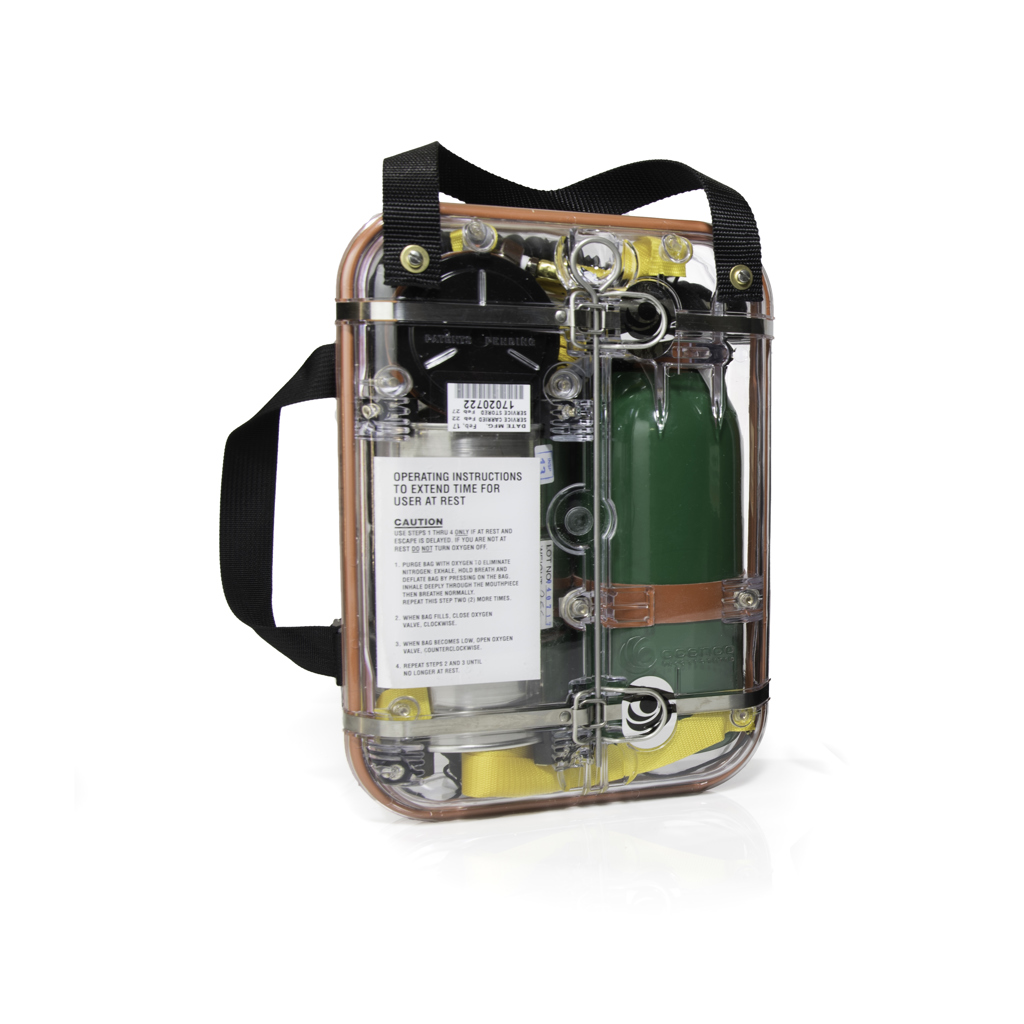

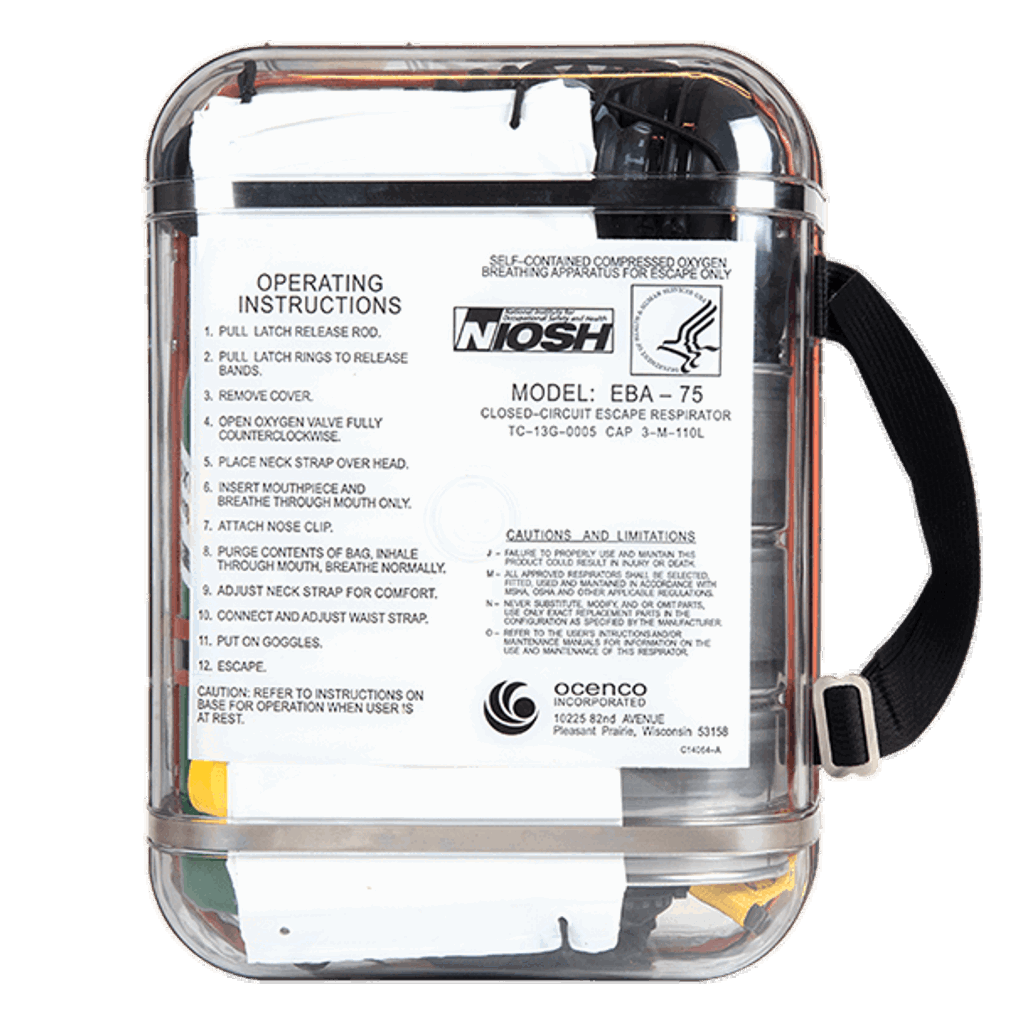

The EBA-75 is a compressed oxygen closed-circuit escape respirator (CCER), also known as a self-contained self-rescuer (SCSR). The rugged clear case allows the miner to quickly and accurately assess the condition of the device. The oxygen delivery system allows the user to inhale immediately from the device when donned, and provides up to 100 liters of oxygen flow during high work rates. The User at Rest procedure will provide a trapped miner up to 6.5 hours of respiratory protection.
EBA-75 CCER Physical Characteristics & Performance Data
| Oxygen Delivery | Demand regulated with supplemented constant flow |
|---|---|
| Performance Duration | Up to 6.5 hours |
| Donning Time | Less than 30 seconds |
| Service Life | 15 years |
| Storage Temperature | 10º –140º F (-12º –60º C) |
| Inspection | Visual |
| Inspection Frequency | Every 90 days for stored units; daily if carried |
| Approvals | MSHA/NIOSH CAP 3-M-110L |
| Weight as Donned | 8.0 lbs. (3.6 kg) |
| Product Dimensions | 8.6" x 11.9" x 4.6" (21.8cm x 30.2cm x 11.7cm) |
Gallery
Accessories
EBA-75T Trainer
The training unit for EBA-75 CCER comes in a translucent orange container.
EBA-75 CCER Trainer P/N 900400
Expectation Trainer
The Ocenco Expectation Trainer is sold as two separate assemblies.
Mouthpiece – P/N 900060
Cartridge – P/N 900059
